2026 Chevy Silverado 1500 Payload & Bed Size Guide

Silverado 1500 Bed Sizes and Cab Pairings

The bed you can order is tied directly to the cab you choose, so the two decisions happen at the same moment. Chevy builds the 2026 Silverado 1500 in Regular Cab, Double Cab, and Crew Cab forms, and each one opens a different set of bed lengths.

Regular Cab is the specialist. With one row of seats and the shortest wheelbase in the lineup, it pairs with the 6'7" Standard Bed or the 8'2" Long Bed — the configuration fleet buyers order when bed length and carrying capacity outrank passenger count. It is also where the highest payload numbers live.

Double Cab splits the difference: rear doors and a second row of seats, matched exclusively with the 6'7" Standard Bed. For a two-person crew that needs a real bed but only occasional back-seat space, it is the most efficient package on the lot.

Crew Cab is the volume seller, and it offers the 5'10" Short Bed or the 6'7" Standard Bed. Central Ohio buyers who use a truck as a family vehicle Monday through Friday and a hauler on Saturday usually land here — the Short Bed keeps overall length manageable in a driveway, while the Standard Bed adds 8.8 cubic feet for not much more truck.

One rule saves a lot of second-guessing: buy the bed for your heaviest, bulkiest recurring load, then choose the cab around the people who ride with you most weeks.

2026 Chevy Silverado 1500 Bed Dimensions

Length gets the headline, but width and depth decide what actually fits. Every 2026 Silverado 1500 bed measures 71.4 inches across the floor and 22.4 inches deep from floor to rail — dimensions that hold across all three lengths, so stepping up in bed size adds room front to back without changing how you load side to side.

The number that matters most to anyone hauling building materials is 50.6 inches between the wheelhousings. Standard 4x8 sheets of plywood, drywall, and OSB measure 48 inches wide, so they drop flat onto the bed floor instead of riding at an angle on top of the wheel wells. In the 8'2" Long Bed, a full sheet lies down with the tailgate closed.

Cargo volume tells the same story in cubic feet: 62.9 for the Short Bed, 71.7 for the Standard Bed, and 89.1 for the Long Bed. That top figure leads the half-ton segment. Remember that volume and weight are separate limits — you will usually hit the payload ceiling with dense material like gravel or block long before you fill the box, and curb weight is what drives that ceiling, which is why our Silverado 1500 weight breakdown is worth a read alongside this guide.

Measure your most awkward regular load once — a mower deck, a toolbox, a pair of dirt bikes — and these four numbers will tell you exactly which bed to order.

How Silverado 1500 Payload Capacity Is Calculated

Payload is not a marketing figure Chevy assigns to a trim. It is arithmetic: gross vehicle weight rating minus curb weight. GVWR is the maximum the truck is engineered to weigh with everything aboard, and on the 2026 Silverado 1500 it typically ranges from about 6,700 to 7,300 pounds depending on configuration.

Curb weight is the truck itself, fueled and ready, with nothing added. Subtract one from the other and you have your payload allowance. A Silverado rated at 7,100 pounds GVWR that weighs 5,000 pounds at the curb gives you roughly 2,100 pounds to work with — total, not just in the bed.

That distinction trips people up. Payload includes the driver and every passenger, everything in the cab, everything in the bed, aftermarket accessories like a bed cover or toolbox, and the tongue weight of any trailer you hook up. Five adults at an average 170 pounds each already consumes about 850 pounds before a single bag of mulch goes in.

Trailer tongue weight is the biggest hidden bite. A conventional travel trailer typically puts 10 to 15 percent of its loaded weight on the hitch ball, so a 7,000-pound camper adds 700 to 1,050 pounds to your payload total. Tow near the truck's limit and you can run out of payload while the trailer rating still looks comfortable.

Your specific truck's number is printed on the yellow tire and loading information label inside the driver's door jamb, under the line that reads "the combined weight of occupants and cargo should never exceed XXX lbs." That sticker beats any published estimate, because it reflects the exact options on that VIN. Our team at Lash Chevrolet will read it with you before you order.

2026 Silverado 1500 Payload Capacity by Engine

Because payload is GVWR minus curb weight, the lightest powertrain usually wins — which is why the smallest engine in the lineup posts the biggest number. The 2.7L TurboMax four-cylinder rates up to 2,260 pounds, the highest in the 2026 Silverado 1500 range, while producing 310 horsepower and 430 lb.-ft. of torque.

The 5.3L EcoTec3 V8 follows at up to 2,120 pounds with 355 horsepower, and it remains the most-ordered engine for buyers who want V8 sound and a payload rating that still clears a ton. The 6.2L EcoTec3 V8 delivers 420 horsepower and up to 2,040 pounds, and the 3.0L Duramax turbo-diesel — the torque king at 495 lb.-ft. — rates up to 1,970 pounds because a diesel inline-six simply weighs more.

Configuration moves the number as much as the engine does. Regular Cab outcarries Double Cab, which outcarries Crew Cab. Two-wheel drive outcarries four-wheel drive by roughly 100 to 200 pounds. Work-oriented trims outcarry loaded ones, since heated leather, sunroofs, and skid plates all count against you.

Off-road trims sit at the bottom of the range for exactly that reason. A Crew Cab Short Bed ZR2 with the 6.2L V8 rates near 1,520 pounds — still enough for a crew and a load of gear, but a reminder that suspension hardware and 33-inch tires are paid for in payload. Adding the available Max Trailering Package raises GVWR on eligible configurations and can return up to about 260 pounds.

If maximum carrying capacity is the goal, the counterintuitive answer is the four-cylinder — and it tows 9,500 pounds properly equipped, so you are not giving up much to get it.

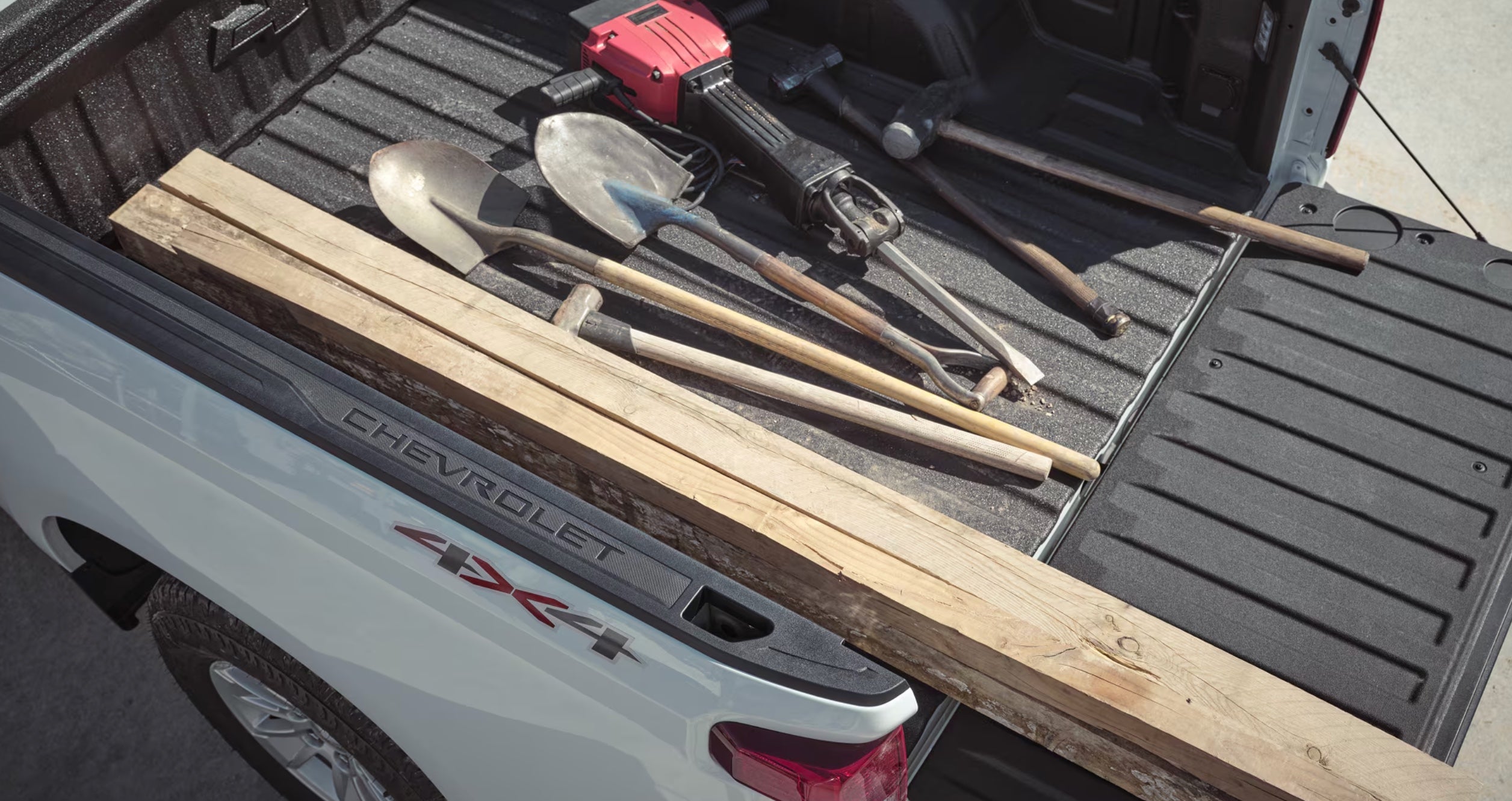

Bed Features and Cargo Management

Chevy's Durabed backs up its dimensions with hardware that earns its keep on a jobsite. Twelve standard fixed tie-downs ring the box, each rated to help secure serious loads, and available movable tie-downs let you build anchor points around whatever is riding that day.

Protection matters too. A spray-on bedliner is available from the factory and stands up to shovels and steel-toe boots better than a drop-in, and available bed rail protectors keep the top edges intact when you slide lumber across them. For trailering setups, the integrated hitch platform and available trailer camera views simplify the connection.

None of these change the payload rating, but they change how quickly a load gets secured — and on a working truck, that is the spec you feel every day.

What Fits: Real-World Payload Examples

Ratings mean more when they are attached to things you actually haul. A cubic yard of dry topsoil runs roughly 2,000 pounds, which a well-equipped Silverado 1500 handles — but the same yard soaked by an Ohio spring rain can push past 2,700 pounds and exceeds every half-ton on the market.

Pea gravel and crushed limestone are heavier still, near 2,800 pounds per cubic yard, so most suppliers will load a half-ton with about three-quarters of a yard. Mulch is the opposite problem: a yard weighs only 400 to 800 pounds, so you will fill the box long before you approach the weight limit.

Sheet goods are friendlier. Twenty sheets of 3/4-inch plywood total roughly 1,400 pounds and lay flat between the wheelhousings, leaving payload for a couple of passengers and a toolbox. A pallet of sod, at 2,000 to 2,500 pounds, is a one-pallet-at-a-time job for a 1500 — and a good reason to ask about the 2500 HD if it is your weekly routine.

Recreation loads rarely strain the truck. Two dirt bikes run about 500 pounds, a side-by-side in the Long Bed lands near 1,200 pounds, and a truck camper is where you need to do real math. Fuel economy shifts under load as well, which our Chevy Silverado 1500 MPG and fuel economy guide puts in context by engine.

Weigh the truck loaded at a certified scale once and you will never guess again — most central Ohio quarries and grain elevators will let you cross the pad for a few dollars.

Payload vs. Towing Capacity: Knowing the Difference

The two numbers get used interchangeably at tailgates and they should not be. Payload is weight the truck carries on its own frame and axles. Towing capacity is weight the truck pulls behind it on a trailer's wheels. The 2026 Silverado 1500 rates up to 2,260 pounds of the first and up to 13,300 pounds of the second.

They are linked through tongue weight. Every conventional trailer transfers part of its load onto the hitch, and that weight counts against payload, not towing. Hook a 9,000-pound trailer with 12 percent tongue weight to a truck rated for 1,700 pounds of payload and you have spent more than 1,000 pounds before your passengers climb in.

Two other ratings round out the picture. GCWR — gross combined weight rating — caps what the truck and trailer can weigh together, and GAWR limits how much weight each axle can carry. Loading the bed heavy behind the rear axle can max out the rear GAWR even when your total payload still looks legal.

The practical takeaway: if you tow near the top of the range regularly, choose a configuration with payload headroom rather than the highest tow rating. Buyers cross-shopping the segment can see how the numbers stack up in our Chevy Silverado 1500 vs Ram 1500 comparison.

When both numbers matter, the honest test is a loaded scale ticket — not a spec sheet.

Payload and Bed Options by Trim

Nine trims cover everything from municipal fleets to desert running, and the payload story shifts as you climb the ladder. Lighter, simpler trucks carry more.

The WT ($36,900) is the capacity champion — the only trim available in all three cabs and the only route to the 8'2" Long Bed, which is why it posts the highest payload figures in the lineup. Custom ($42,400) adds comfort in Double and Crew Cab form with the Standard or Short Bed. LT ($47,900) is the balanced pick, keeping strong ratings while adding the 13.4-inch touchscreen and available heated seats.

RST ($51,300) brings street styling with the same bed choices, while Custom Trail Boss ($52,900) and LT Trail Boss ($59,700) trade several hundred pounds of payload for a 2-inch factory lift and off-road hardware. LTZ ($58,000) steps into leather-appointed comfort in Crew Cab form.

At the top, High Country ($62,900) prioritizes premium materials and available Super Cruise, and the ZR2 ($71,800) sits lowest on payload at roughly 1,520 pounds because of its Multimatic dampers, skid plates, and 33-inch tires. If you want the feature-by-feature layout of each trim, our Chevy Silverado 1500 trim levels guide lines them up side by side.

Starting prices exclude destination freight and are subject to change, and payload varies by build — contact Lash Chevrolet for the exact rating on any truck in stock.

Conclusion

The 2026 Chevy Silverado 1500 gives you two levers to pull: up to 2,260 pounds of payload and a Durabed that stretches from 62.9 to 89.1 cubic feet. Match the engine and cab to the weight you carry, match the bed to the shape of it, and the truck stops being a compromise.

For most buyers the sweet spot is a Crew Cab with the 6'7" Standard Bed and the 5.3L V8 — enough payload for a full crew and a serious load, enough bed for sheet goods, and enough seat space to double as a family vehicle. Contractors hauling every day should look hard at a Regular Cab Long Bed WT, and anyone regularly moving pallets should ask us about the 2500 HD instead.
